Overview

Code

Fault Code: 2186

PID: S232

SPN: 3512

FMI: 4/4

LAMP: Amber

SRT:

Reason

Low voltage detected at the 5 VDC sensor supply circuit to the accelerator pedal position sensor.

Effect

Engine will only idle.

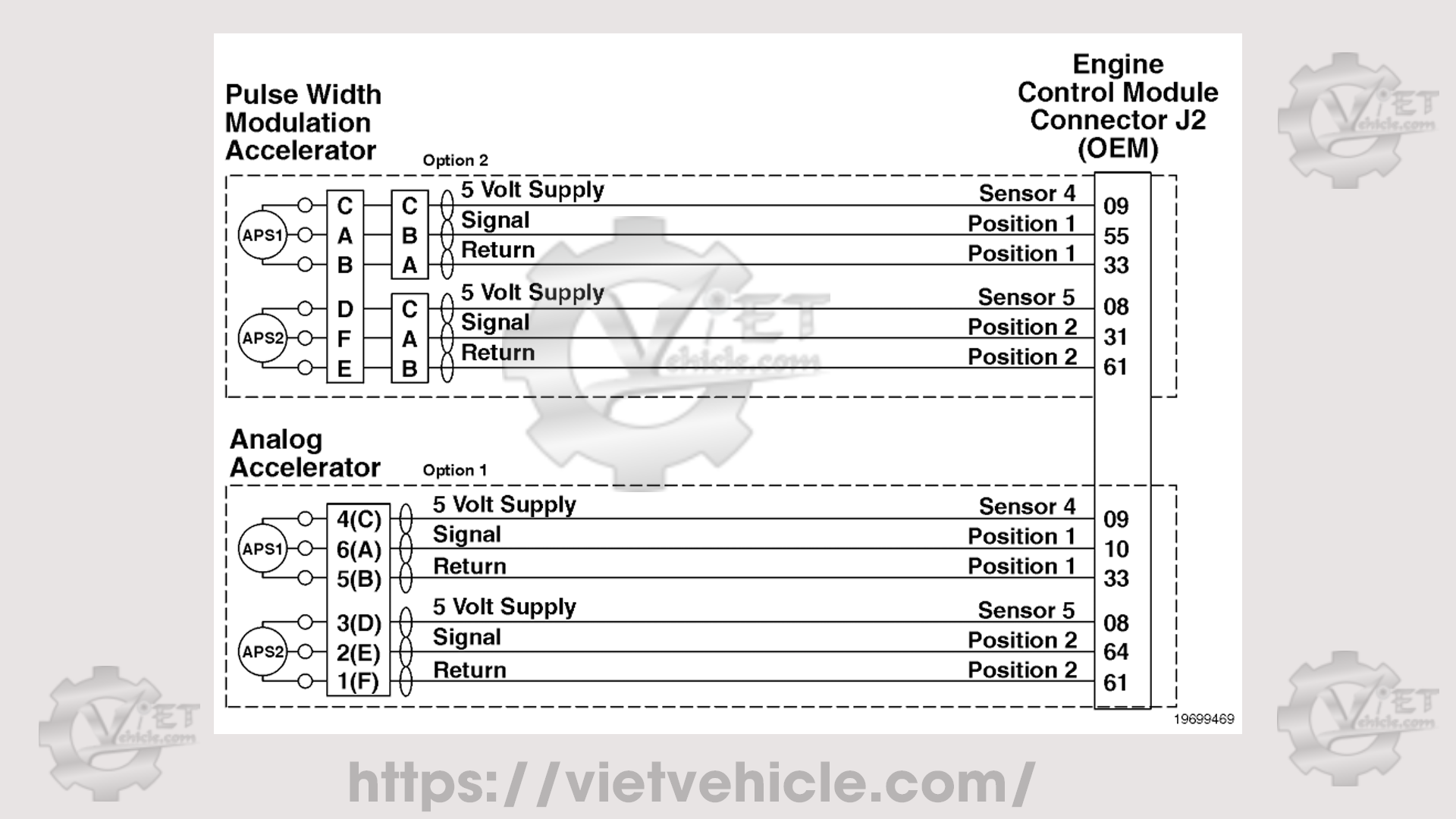

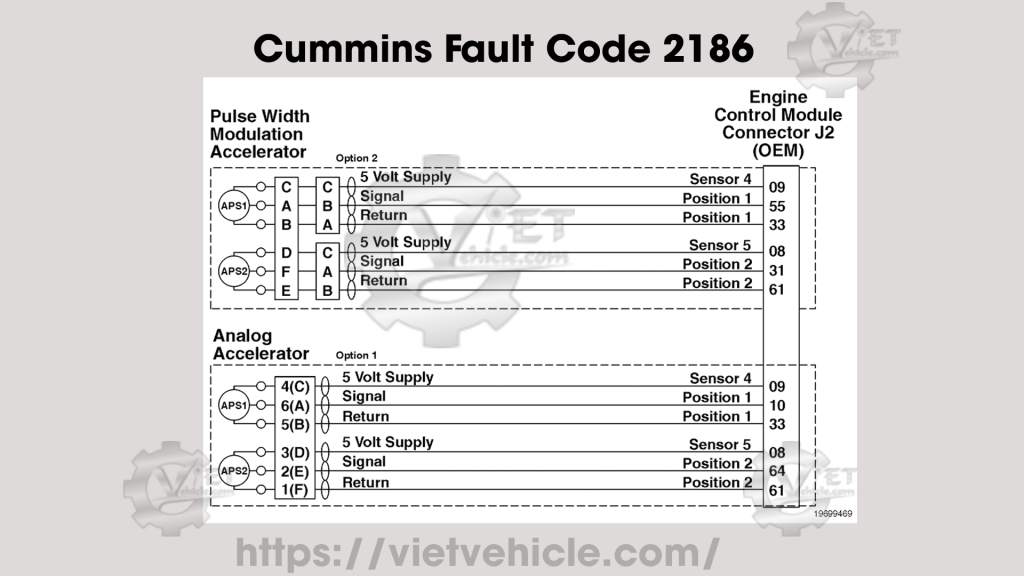

Chú thích ảnh: Sensor Supply 4 Circuit

Circuit Description

Sensor supply 4 of the engine control module (ECM) provides a 5 VDC supply to the accelerator pedal position sensor.

Component Location

The accelerator pedal or lever position sensor is mounted to the accelerator pedal assembly. Refer to the OEM service manual.

Conditions for Running the Diagnostics

This diagnostic runs continuously when the keyswitch is in the ON position or when the engine is running.

Conditions for Setting the Fault Codes

The Engine Control Module (ECM) detected the sensor supply 4 signal voltage was out of range low.

Action Taken When the Fault Code is Active

• The ECM illuminates the amber CHECK ENGINE lamp and/or the malfunction indicator lamp (MIL) immediately when the diagnostic runs and fails.

The engine will only idle.

Conditions for Clearing the Fault Code

• To validate the repair, perform a key cycle, start the engine and let it idle for 1 minute.
• The fault code status displayed by the recommended Cummins electronic service tool or equivalent will change to INACTIVE immediately after the diagnostic runs and passes.
• The ECM will turn off the amber CHECK ENGINE lamp immediately after the diagnostic runs and passes.
• For On-Board Diagnostics (OBD) engines, the ECM will extinguish the Malfunction Indicator Lamp (MIL) after three consecutive trips where the diagnostic runs and passes.
• The “Reset All Faults” command in the recommended Cummins electronic service tool or equivalent can be used to clear active and inactive faults, as well as extinguish the MIL for OBD applications.

Shop Talk

Low voltage on the 5 VDC supply wire can be caused by a short circuit to ground in the supply wire, a short circuit between the supply wire and return circuit, a malfunctioning accelerator, or a malfunctioning ECM power supply.

Reference the appropriate OEM wiring diagram when troubleshooting circuits that utilize wiring supplied by the OEM.
