Overview

Code

Fault Code: 222

PID: P108

SPN: 108

FMI: 4/4

LAMP: Amber

SRT:

Reason

Low signal voltage detected at barometric pressure circuit.

Effect

Possible reduced engine performance.

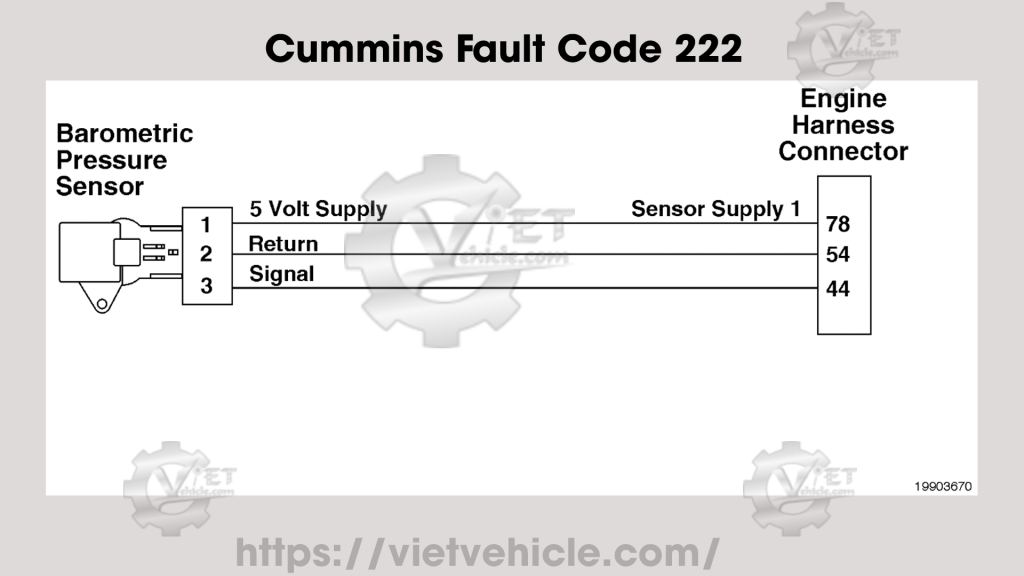

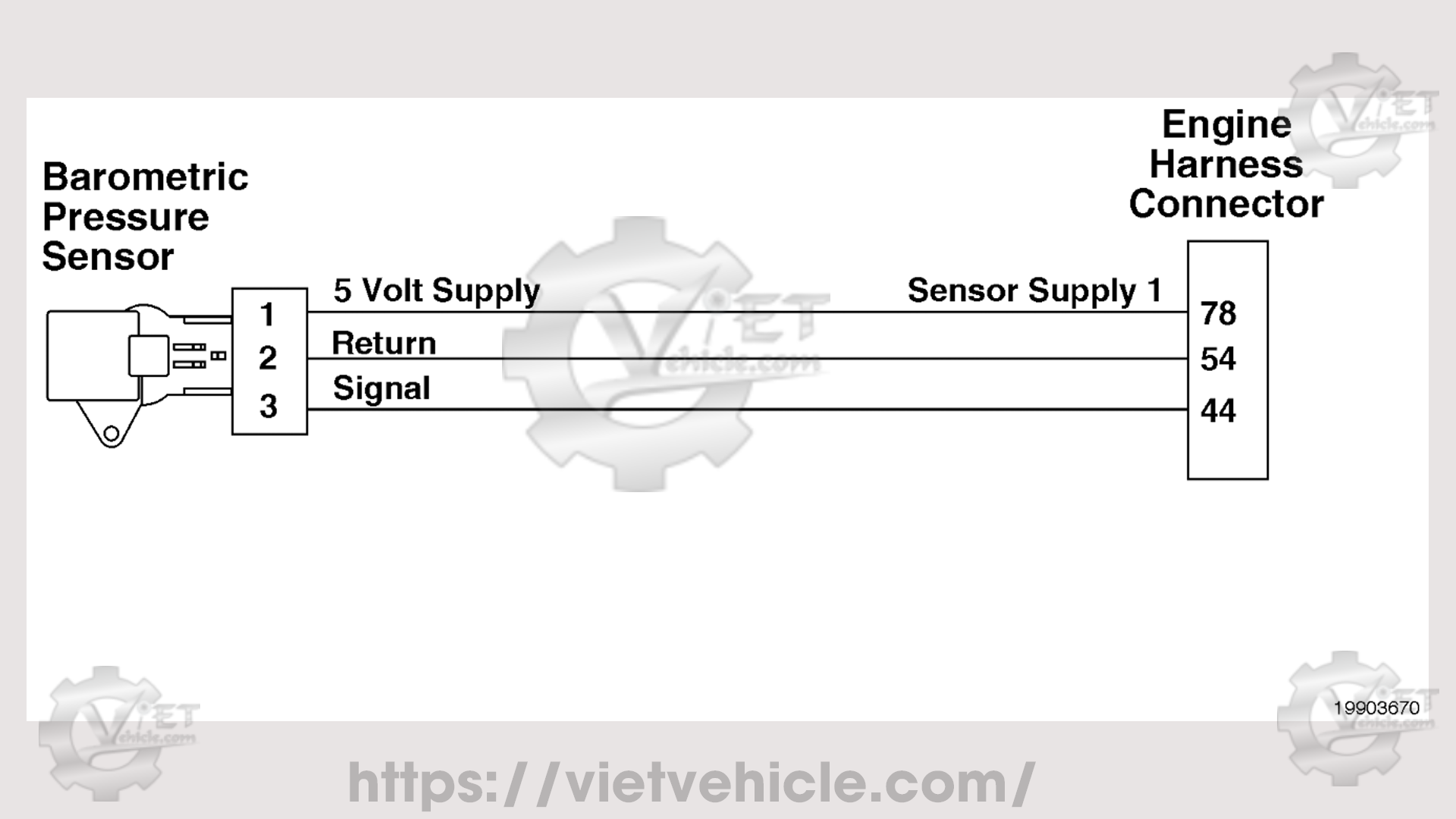

Barometric Pressure Sensor Circuit

Circuit Description

The barometric pressure sensor responds to pressure changes in the atmospheric pressure. The pressure changes occur based on the elevation where the engine is presently operating. The barometric pressure sensor has a 5 volt supply circuit, a sensor signal voltage, and a return circuit.

Component Location

The barometric pressure sensor is mounted on the main branch of the engine harness near the ECM.

Conditions for Running the Diagnostics

This diagnostic runs continuously when the keyswitch is in the ON position or when the engine is running.

Conditions for Setting the Fault Codes

The Engine Control Module (ECM) detected the barometric air pressure signal voltage was out of range low.

Action Taken When the Fault Code is Active

• The ECM illuminates the amber CHECK ENGINE lamp and/or the malfunction indicator lamp (MIL) immediately when the diagnostic runs and fails.

A default value for the barometric pressure reading is used.

Exhaust gas recirculation (EGR) valve operation will be disabled.

• Diesel exhaust fluid injection into the aftertreatment system is disabled.

Engine torque will be reduced if the engine is operated for an extended period of time with this fault active.

Conditions for Clearing the Fault Code

• To validate the repair, perform a key cycle, start the engine and let it idle for 1 minute.
• The ECM will turn off the amber CHECK ENGINE lamp immediately after the diagnostic runs and passes.
• For On-Board Diagnostics (OBD) engines, the ECM will extinguish the Malfunction Indicator Lamp (MIL) after three consecutive trips where the diagnostic runs and passes.
• The “Reset All Faults” command in the recommended Cummins electronic service tool or equivalent can be used to clear active and inactive faults, as well as extinguish the MIL for OBD applications.

Shop Talk

Possible causes of this fault code include:

A short circuit to ground in the engine harness

An open circuit in the engine harness

A malfunctioning barometric air pressure sensor

A malfunctioning engine control module (ECM)
