How to Change measurement on Detroit using DDDL

Figure 1.1 – PC Units

To change measurement units in Detroit Diesel Diagnostic Link (DDDL v6.46), follow these steps:

Connect the Detroit Engine (60 Series) using DDDL v6.46.

Open DDDL v6.46 and connect to the Detroit Engine (60 Series).

Open the Tools menu and select Options

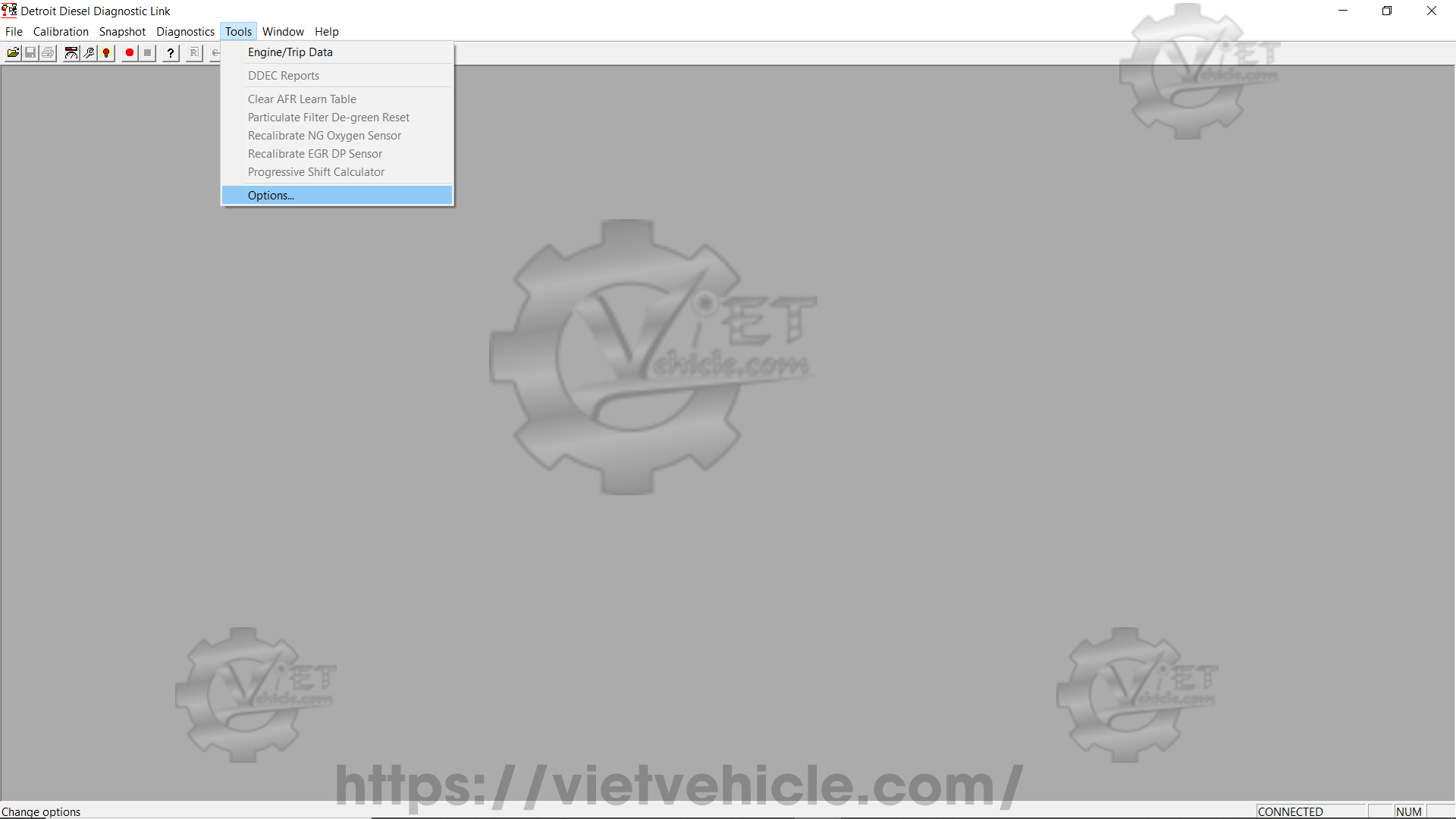

Figure 1.2 – Tools (Options…)

Click on the PC Units tab to adjust the measurement units.

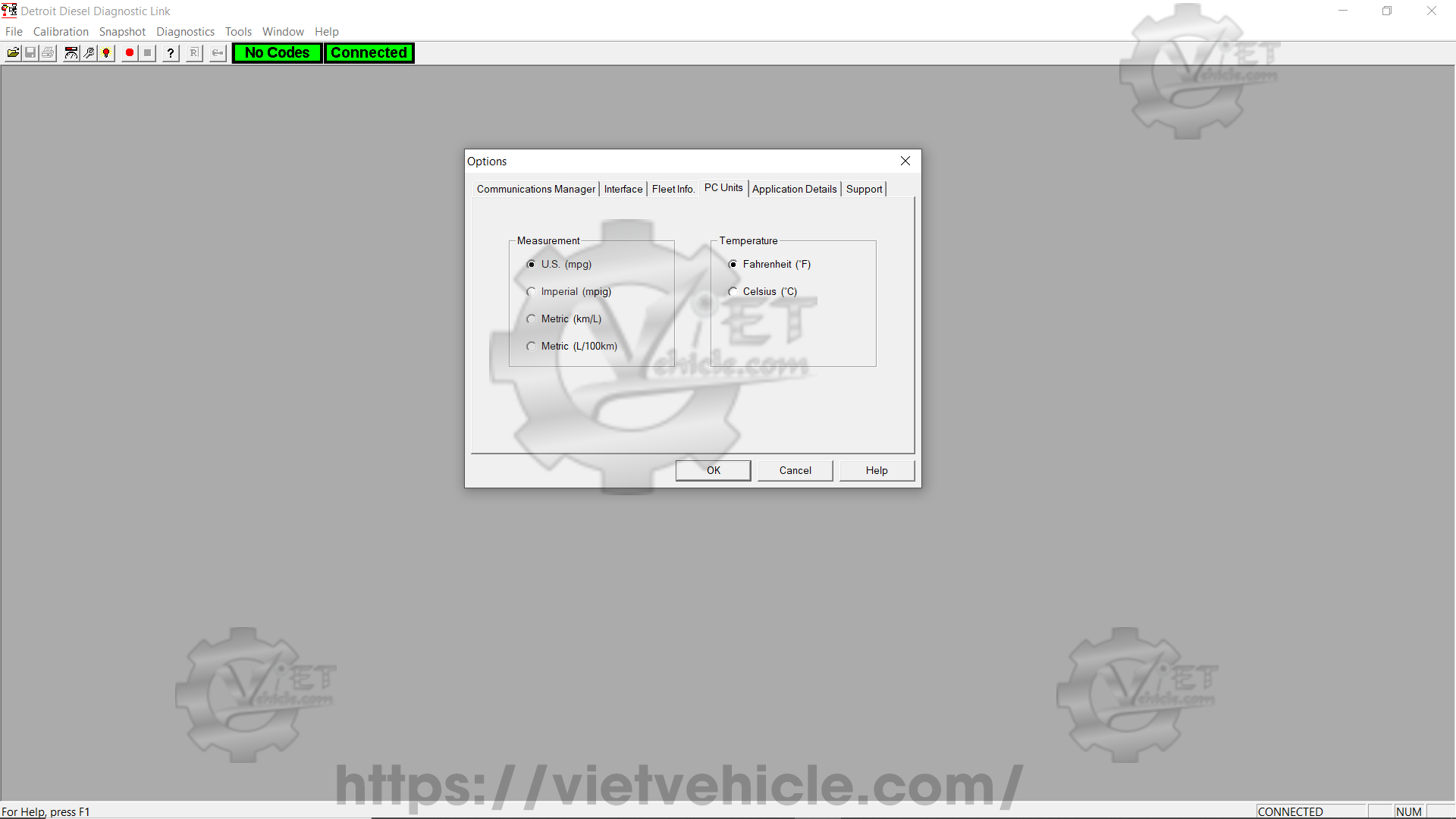

Figure 1.3 – PC Units (Options)

Click on the radio buttons to select the units:

Figure 1.4 – Measurement (U.S./mpg)

Measurement

U.S. (mpg)

Imperial (mpig)

Metric (km/L)

Metric (L/100km)

Fahrenheit (°F)

Celsius (°C)

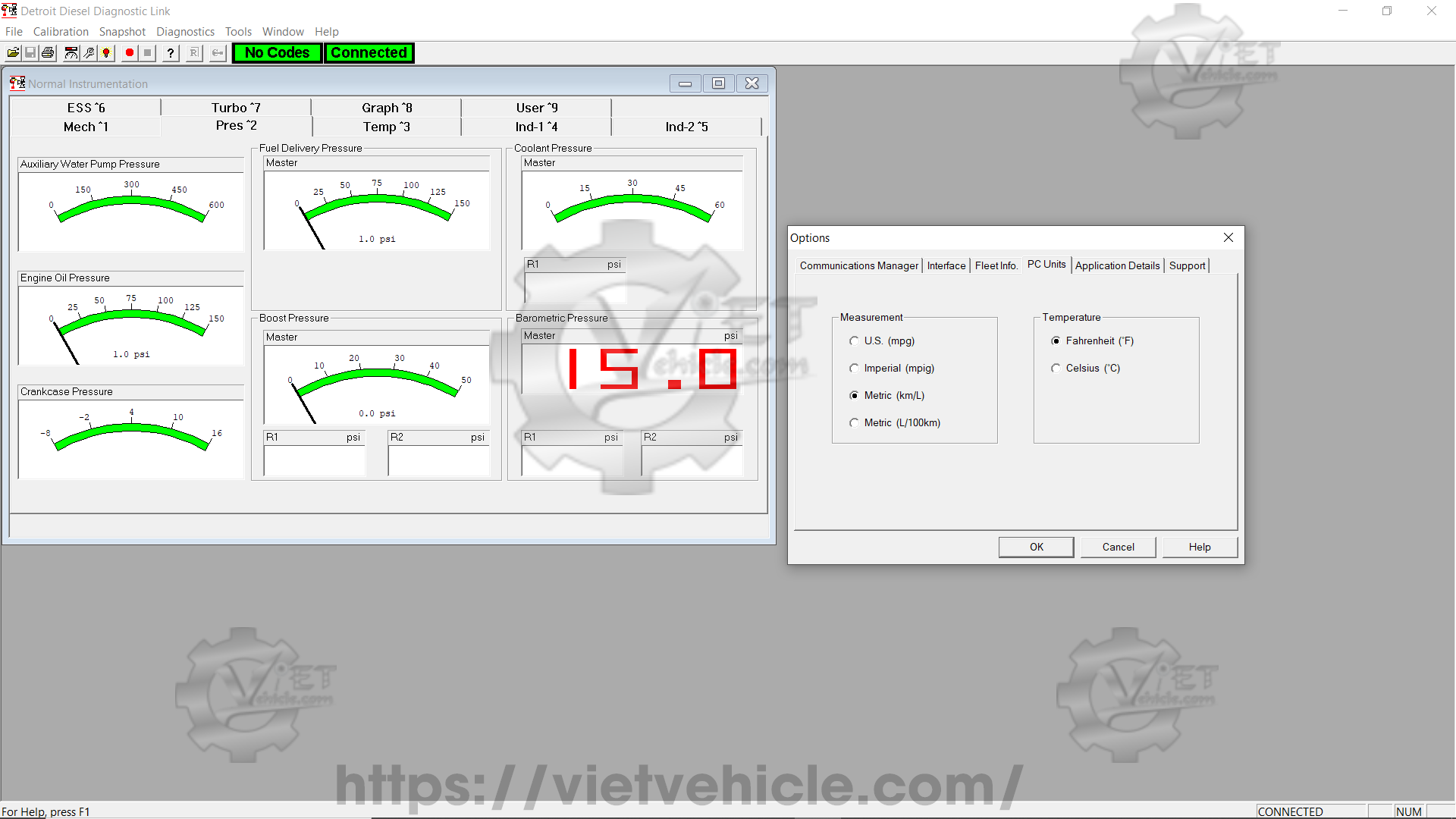

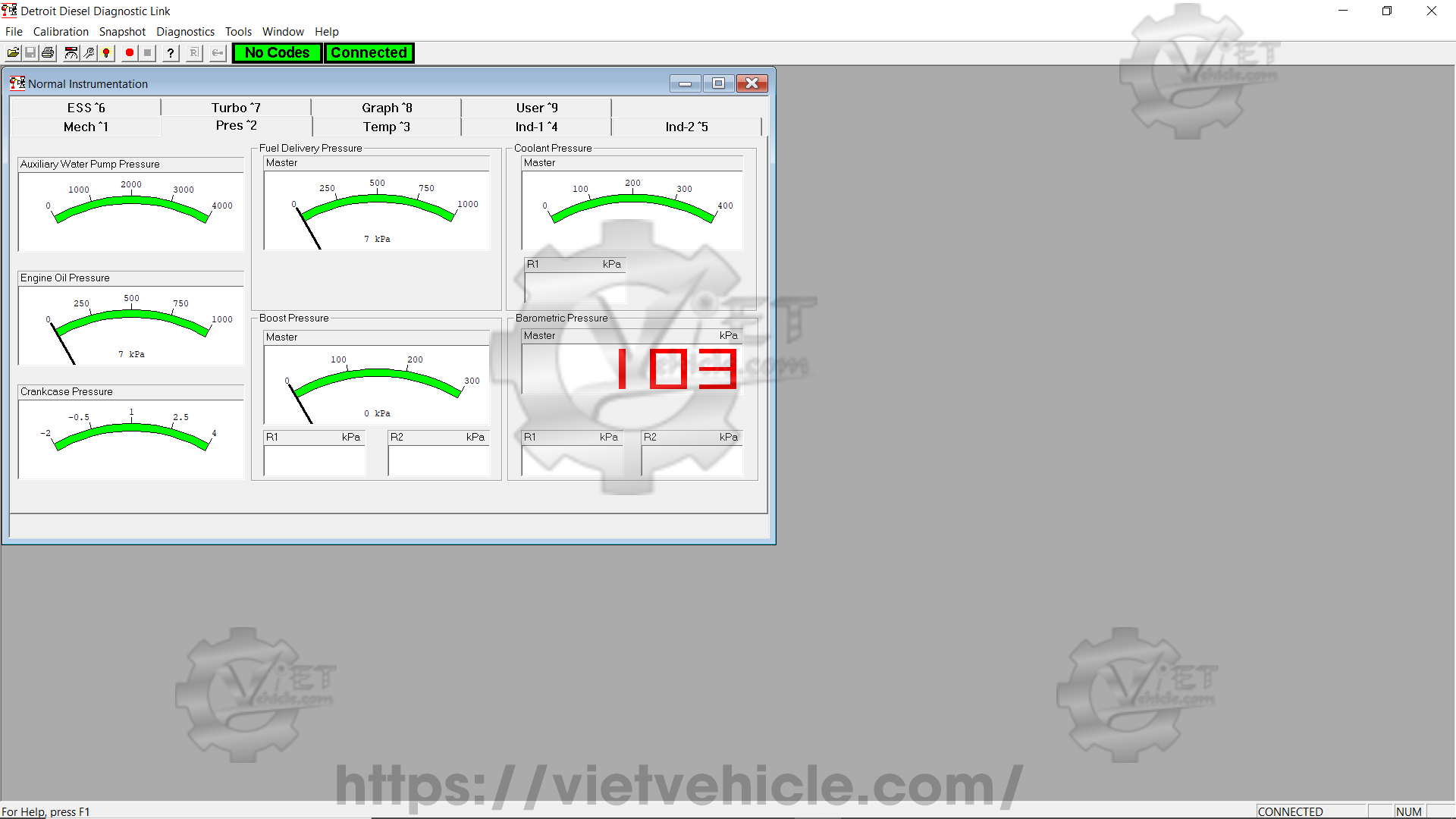

Figure 1.5 – Measurement (Metric/ km/L)

You can also change the Units of Measure using Detroit Diesel Electronic Engine Commander (EEC) by selecting English or Metric.
