How to test Cruise Control, PTO/ Remote PTO on Cummins engine?

How to test Cruise Control PTO Remote PTO on Cummins engine

How to test Cruise Control PTO Remote PTO on Cummins engine 1

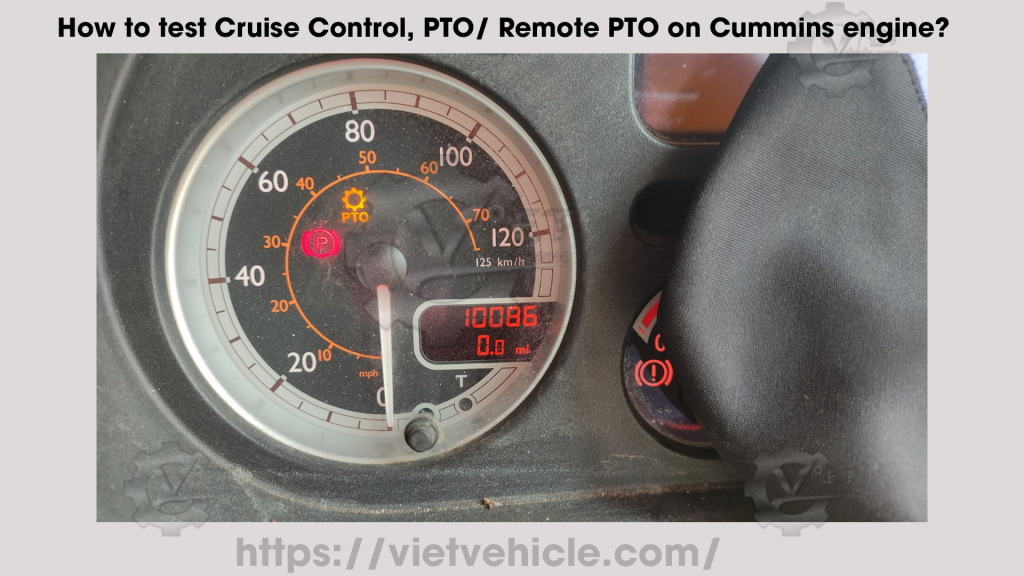

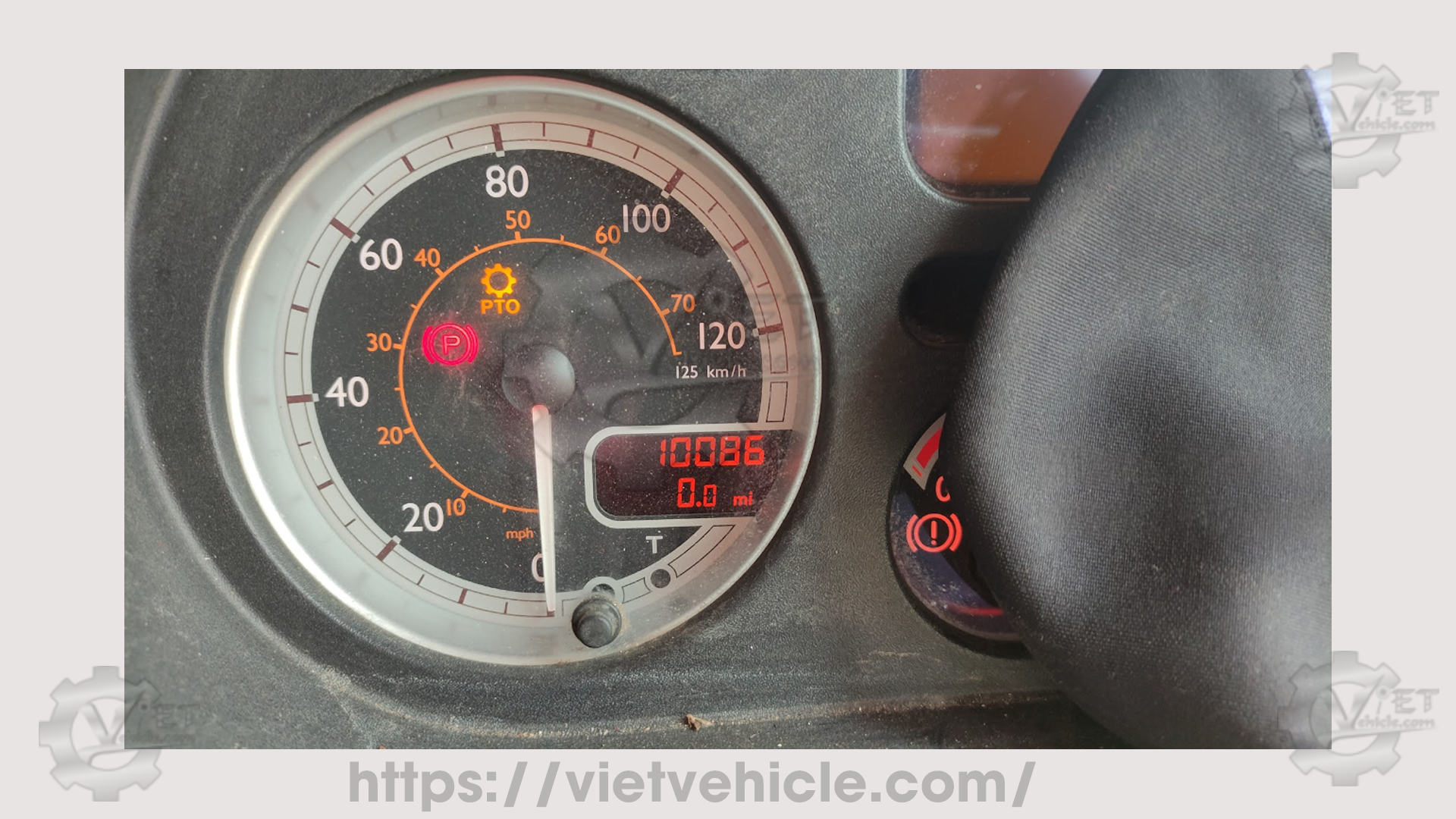

Figure 1.1 – PTO Telltale (Dash Panel)

1. Accessing PTO/Remote PTO Settings

To configure the Power Take-Off (PTO) operation:

  • Open Features and Parameters in the Cummins INSITE software.

  • Navigate to PTO/Remote PTO settings. (For additional details, refer to: Power Take-Off (PTO) Operation on Cummins Engines.)

How to test Cruise Control PTO Remote PTO on Cummins engine 2

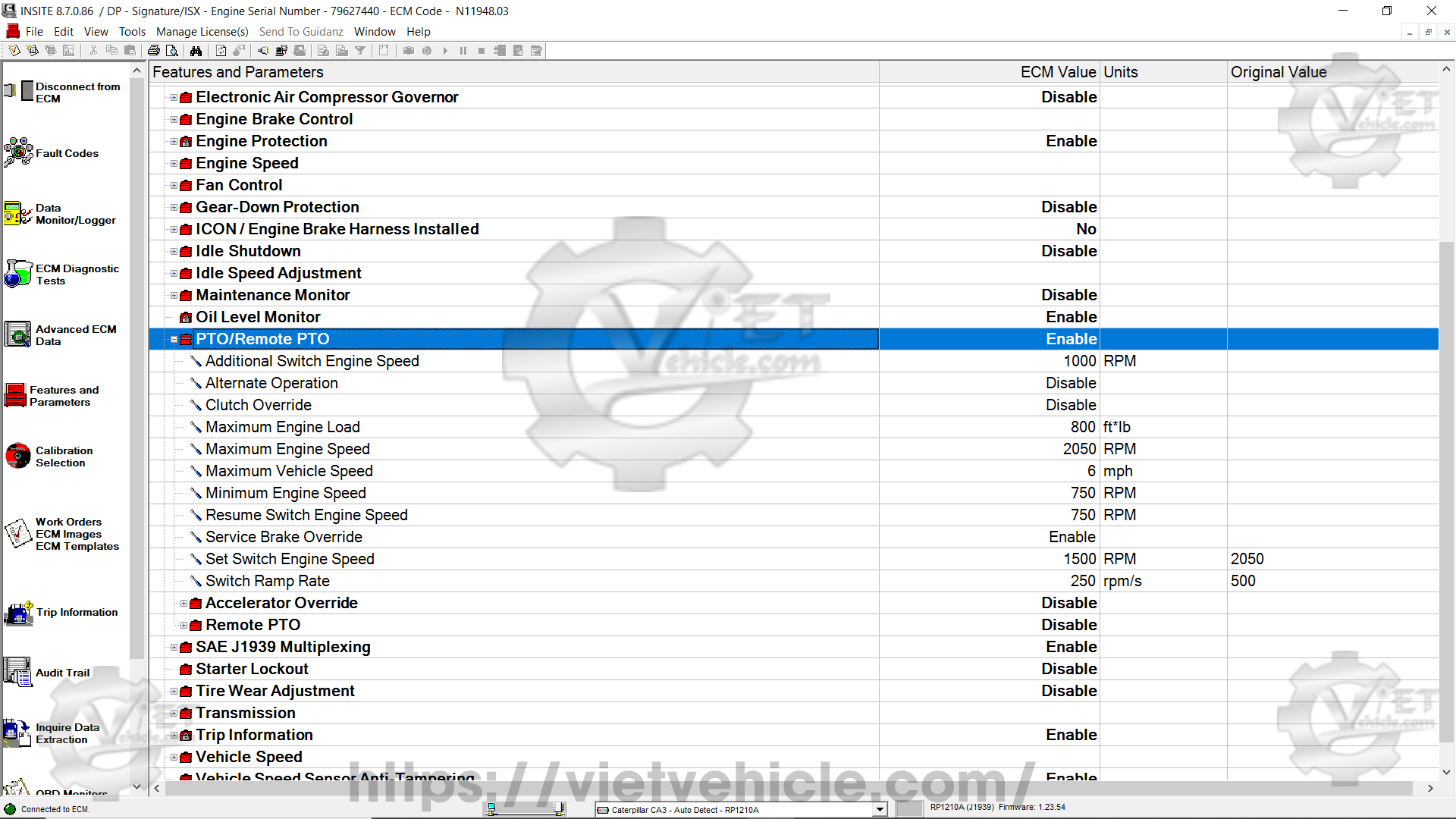

Figure 1.2 – PTO/Remote PTO Adjustable Parameters

The following are the configurable parameters:

  • Maximum Engine Speed = 2050 RPM

  • Minimum Engine Speed = 750 RPM

  • Resume Switch Engine Speed = 750 RPM

  • Set Switch Engine Speed = 1500 RPM

  • Switch Ramp Rate = 250 RPM/s

2. Monitoring PTO/Remote PTO Settings

Use the Data Monitor/Logger to observe the real-time operation of the PTO system. (For additional details, refer to: Data Monitor/Logger on Cummins INSITE Software.)

How to test Cruise Control PTO Remote PTO on Cummins engine 3

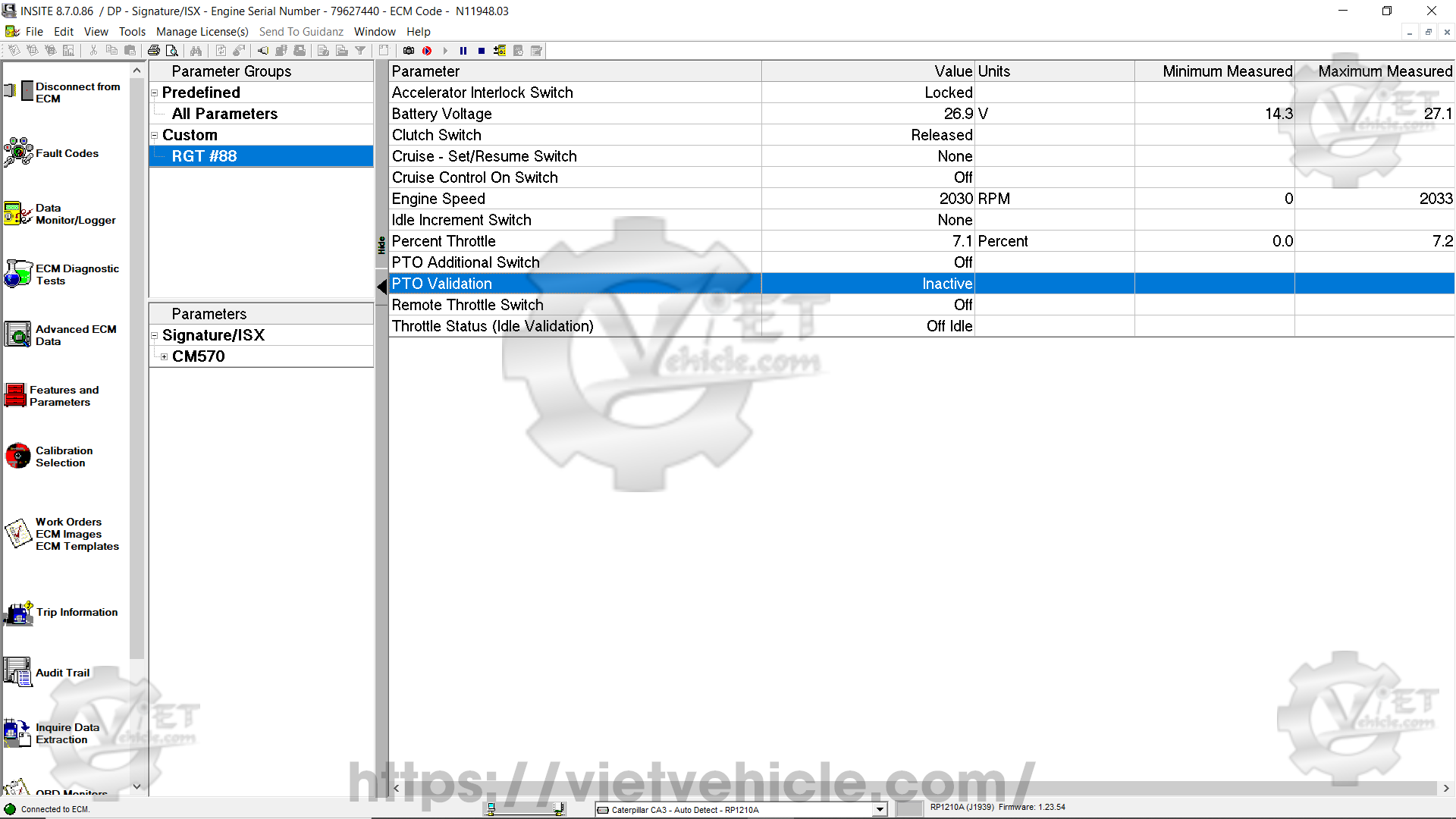

Figure 1.3 – Data Monitor/Logger (Custom)

Before activating PTO, start the engine and allow air pressure to build. The following parameters should be monitored:

  • Cruise – Set/Resume Switch = None

  • Cruise Control On Switch = Off

  • PTO Additional Switch = Off

  • PTO Validation = Inactive

  • Throttle Status (Idle Validation) = Off Idle

3. Activating PTO Operation

  • Depress the clutch.

  • Set the PTO On/Off Switch to ON.

  • Shift the transmission to Drive (D) or the lowest gear.

  • Slowly release the clutch.

How to test Cruise Control PTO Remote PTO on Cummins engine 4

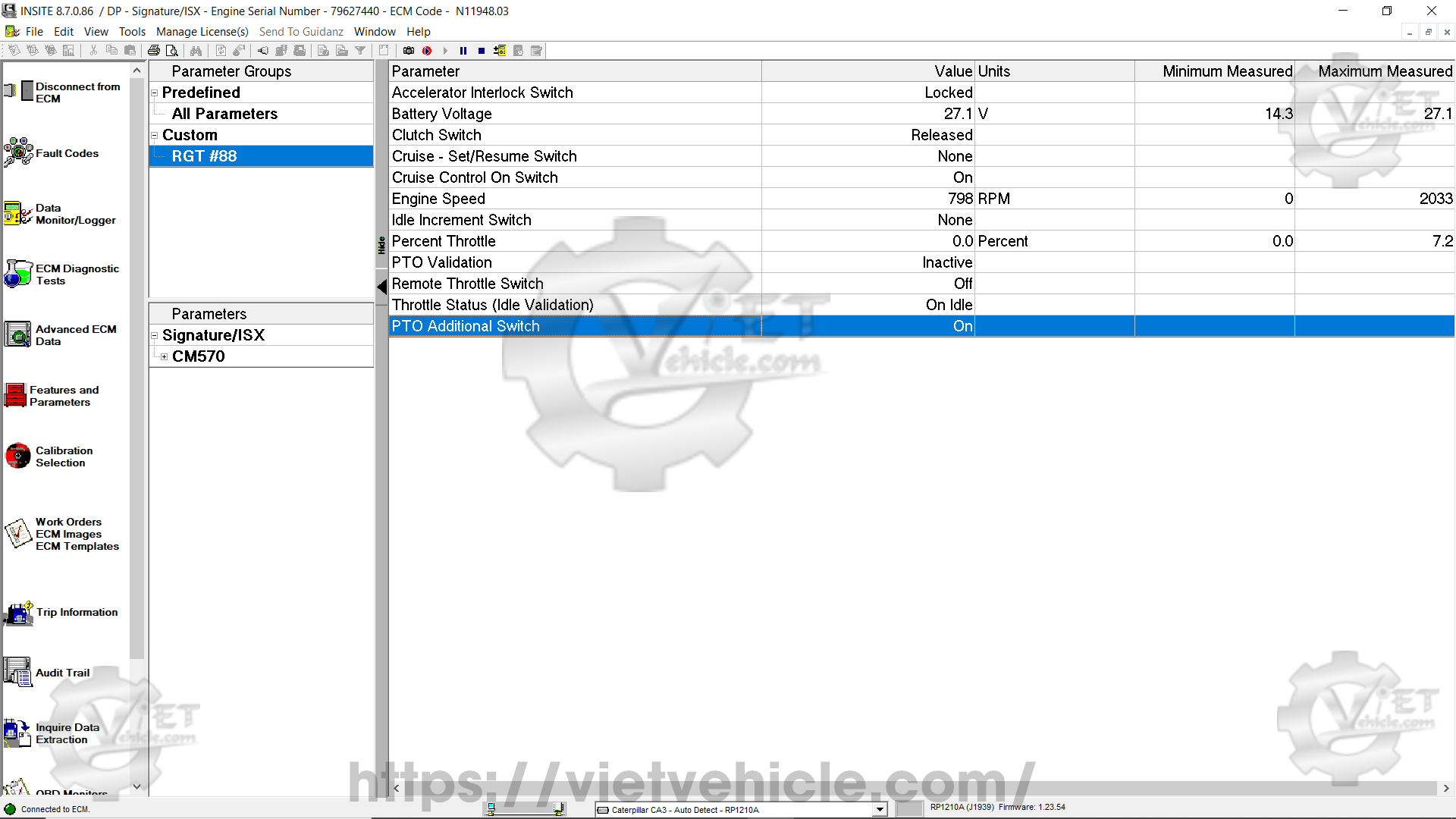

Figure 1.4 – PTO Additional Switch (On)

Once activated, the system parameters should update as follows:

  • Cruise – Set/Resume Switch = None

  • Cruise Control On Switch = On

  • PTO Additional Switch = On (indicating PTO Engage Sense is active and the PTO Solenoid is engaged.)

  • PTO Validation = Inactive

  • Throttle Status (Idle Validation) = On Idle

4. Setting PTO Engine Speeds

Once the Cruise Control Switch is set to ON, engine speed can be adjusted using the Cruise Control Select Switch.

How to test Cruise Control PTO Remote PTO on Cummins engine 5

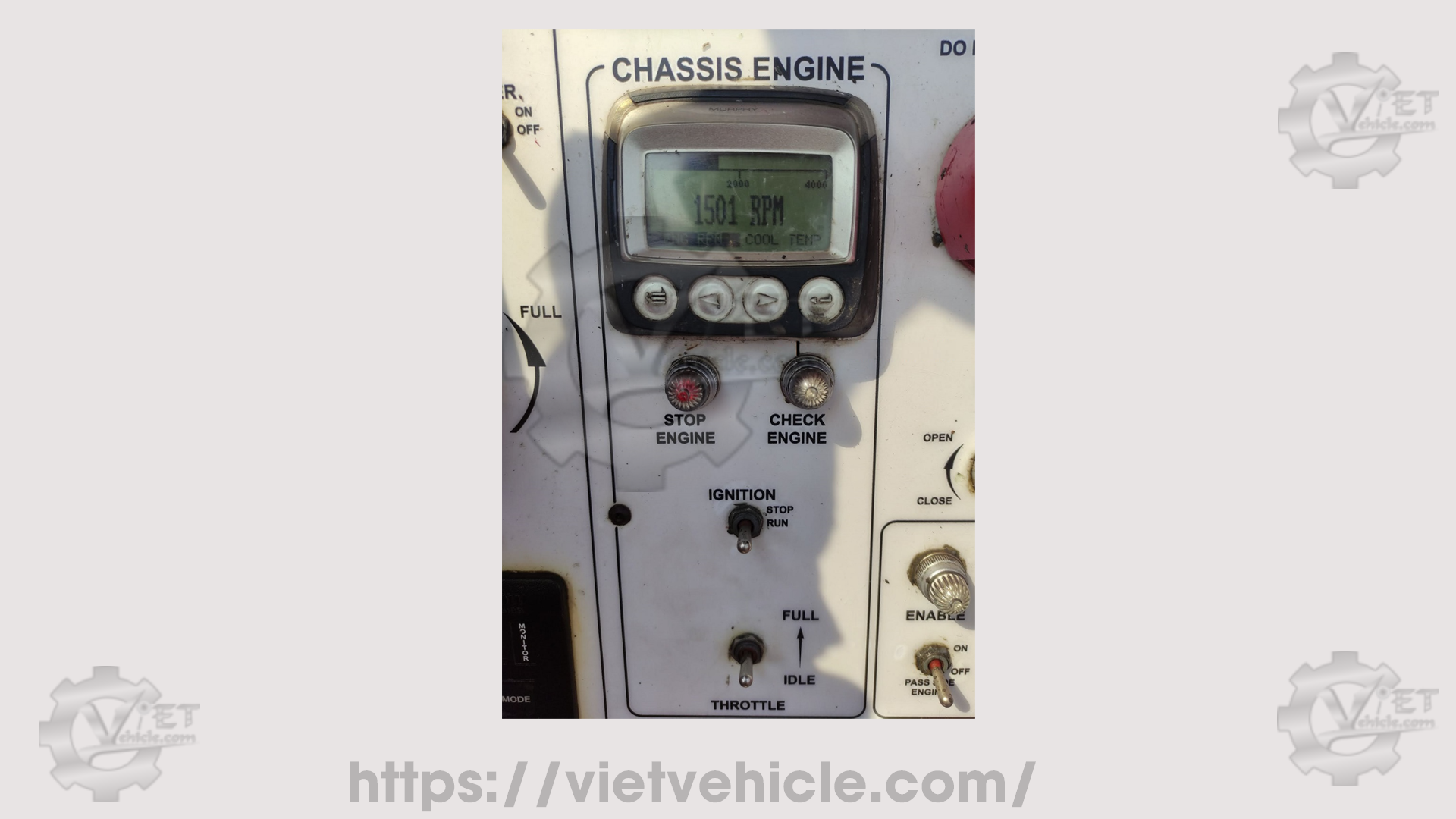

Figure 1.5 – Set Switch Engine Speed (1500 RPM)

  • Move the Cruise Control Select Switch to the SET position.

  • The engine will adjust to 1500 RPM (first preset PTO speed).

  • System parameters will update as follows:

    • Cruise – Set/Resume Switch = None (Momentary Set)

    • PTO Validation = Active

How to test Cruise Control PTO Remote PTO on Cummins engine 6

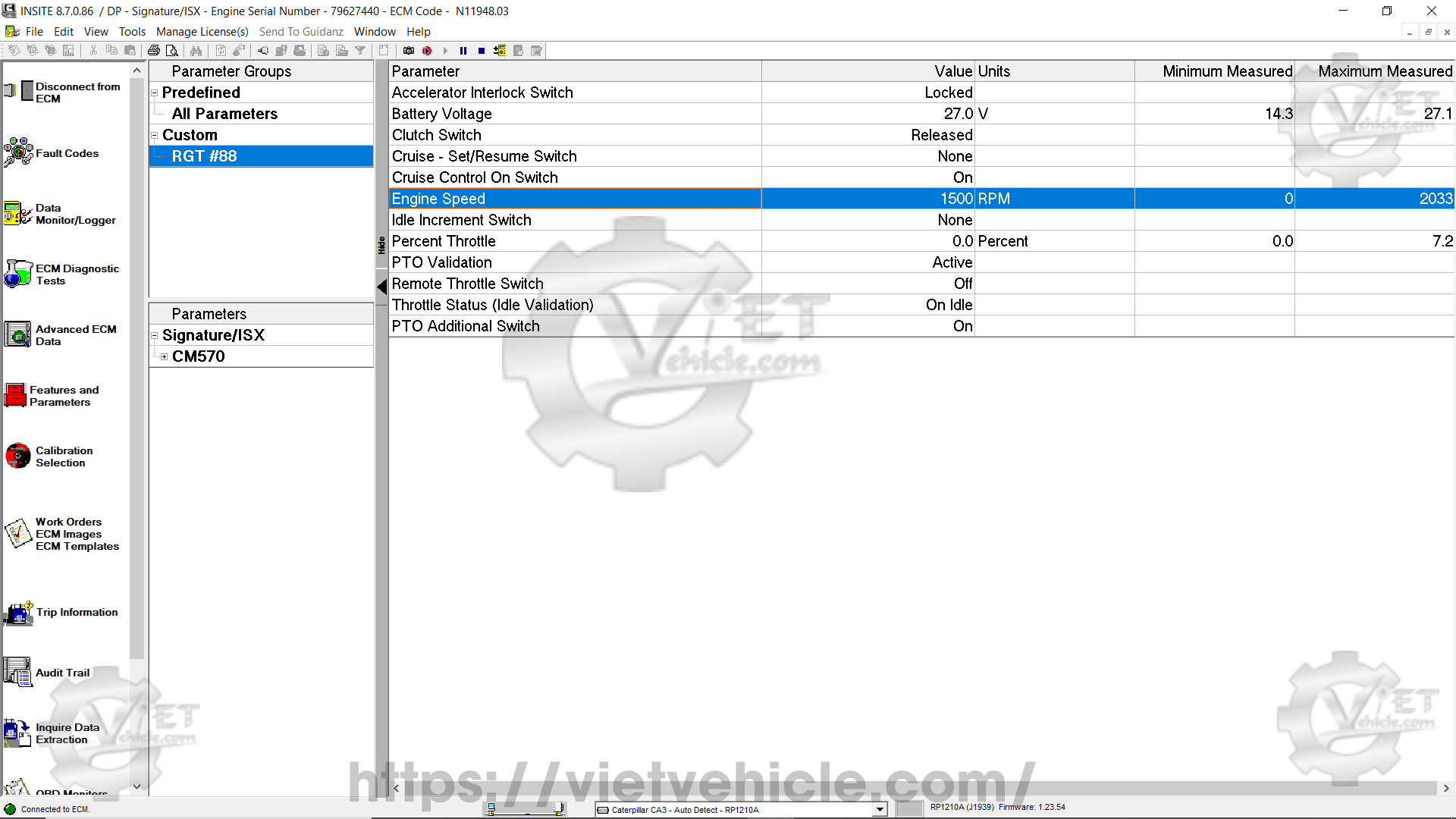

Figure 1.6 – PTO Validation (Active) / Set Switch Engine Speed

To adjust the engine to the second preset PTO speed:

  • Move the Cruise Control Select Switch to RESUME.

  • The engine will adjust to 750 RPM.

How to test Cruise Control PTO Remote PTO on Cummins engine 7

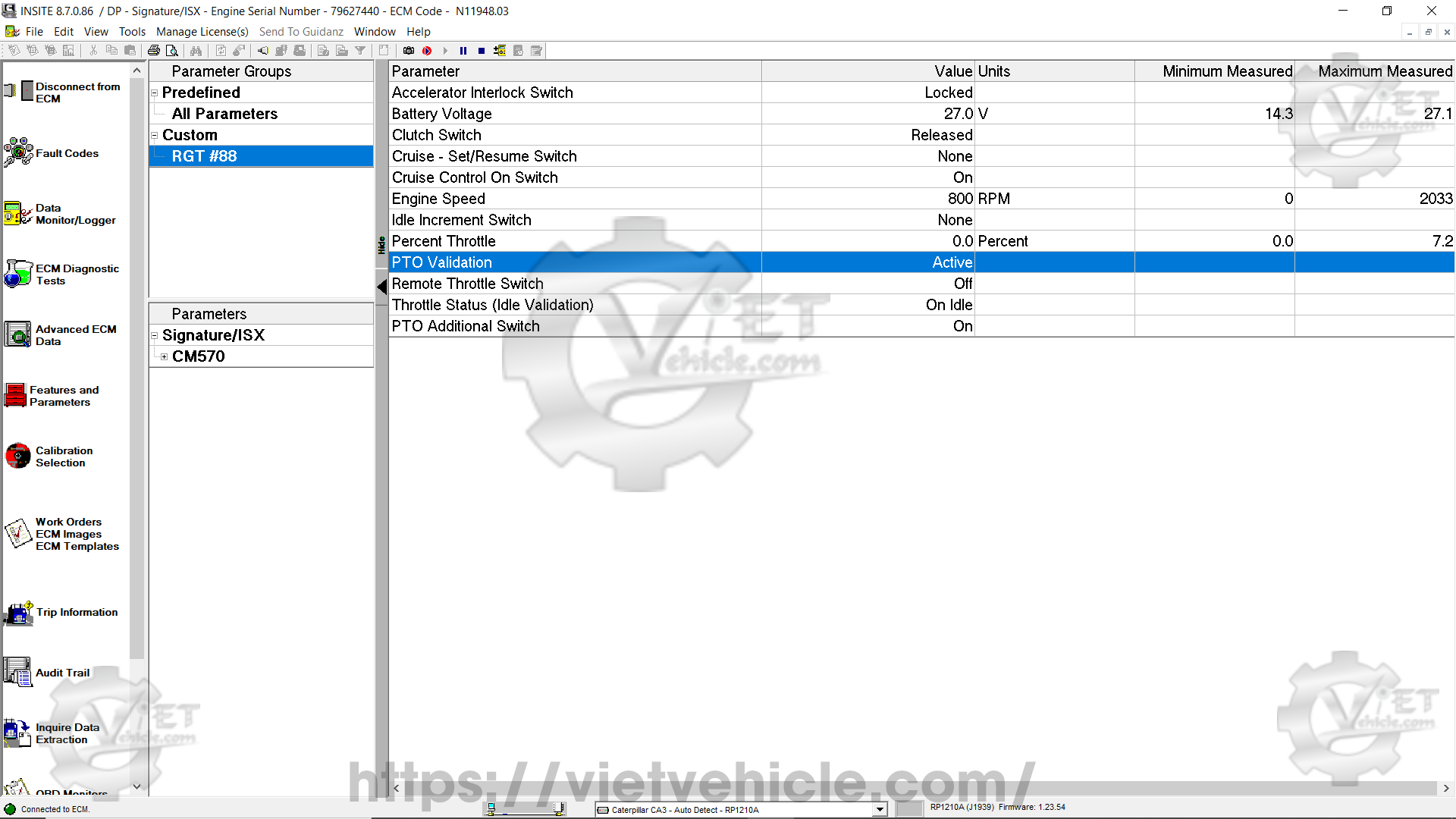

Figure 1.7 – PTO Validation (Active) / Resume Switch Engine Speed

  • A third preset PTO speed is available if Additional Switch Engine Speed is enabled.

  • If Alternate Operation is enabled, only one preset speed is available.

How to test Cruise Control PTO Remote PTO on Cummins engine 8

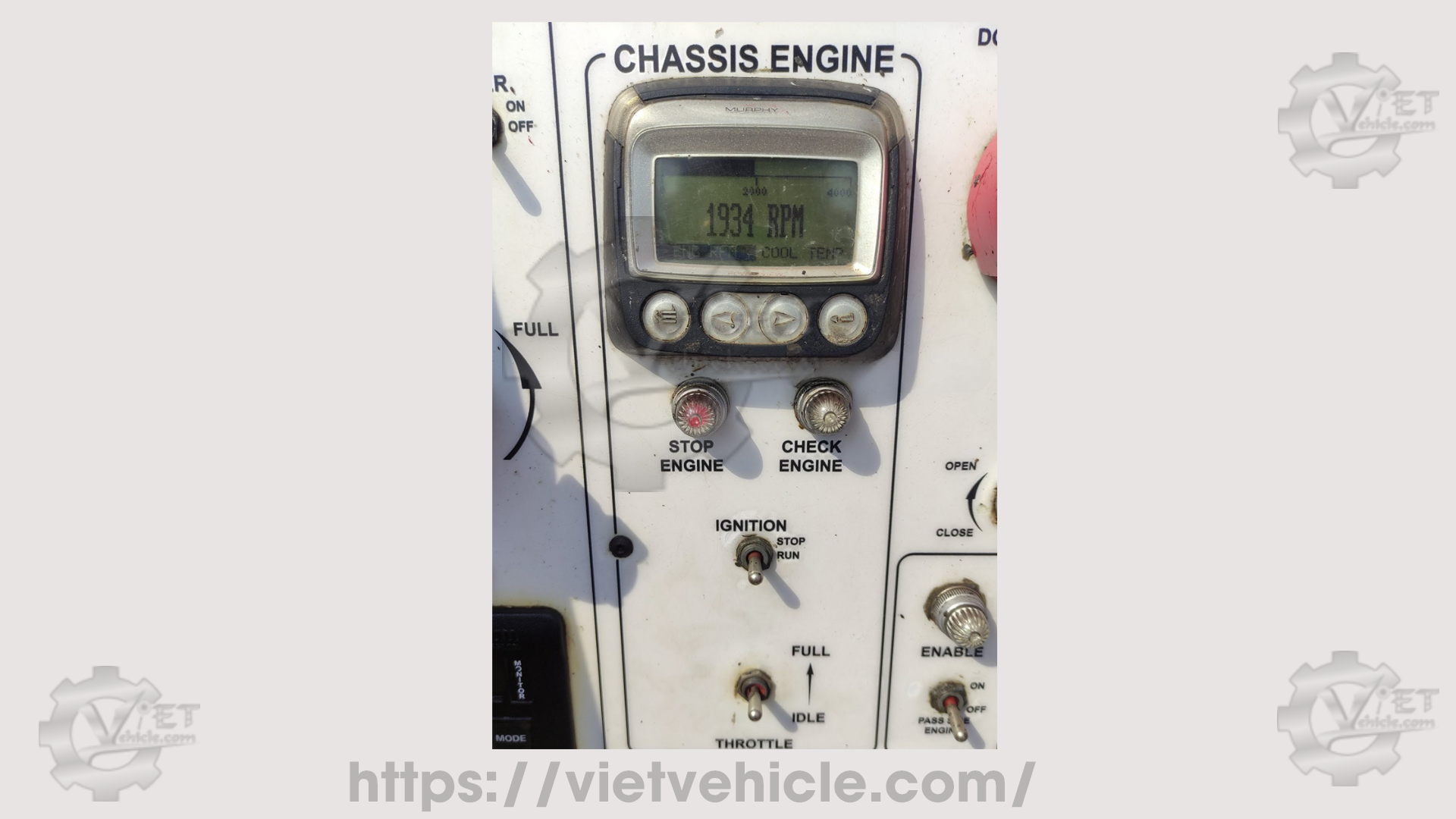

Figure 1.8 – PTO/Engine Speed (1930 RPM)

To manually adjust PTO speed:

  • Hold the Cruise Control Select Switch in the SET/RESUME position.

  • The engine will ramp up at 250 RPM/s until reaching the maximum engine speed of 2050 RPM.

Additional Information

  • Cruise Control/PTO Resume Switch → OEM Connector (Pin 24)

  • Cruise Control/PTO Set Switch → OEM Connector (Pin 14)

  • Cruise Control/PTO On/Off Switch → OEM Connector (Pin 23)

  • Accelerator Interlock Switch → OEM Connector (Pin 42)

Accelerator Position Signal → OEM Connector (Pin 47)
