How to use ECM I/O Configuration function on Detroit DDDL?

How to use ECM I O Configuration function on Detroit DDDL

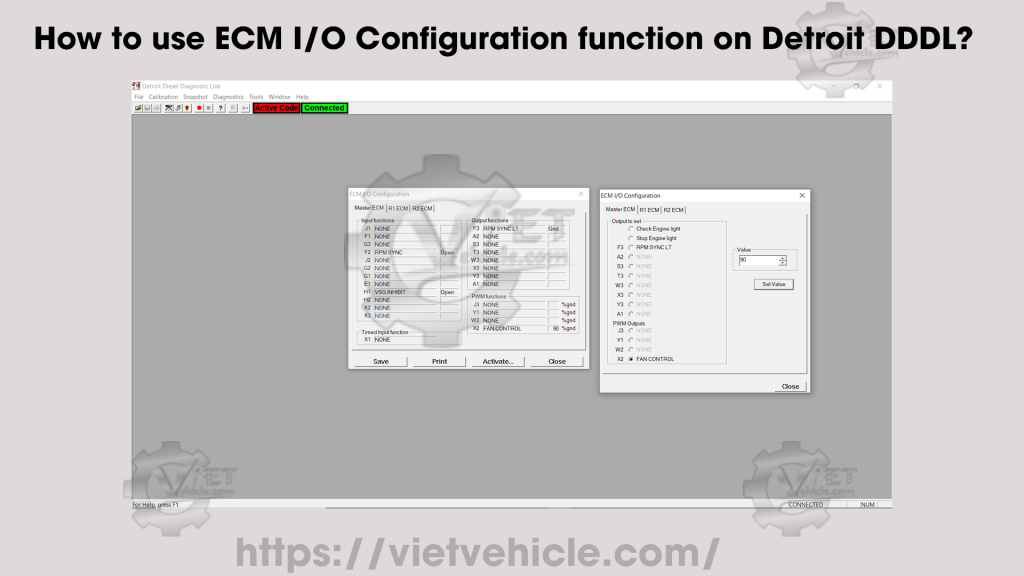

How to use ECM I O Configuration function on Detroit DDDL 1

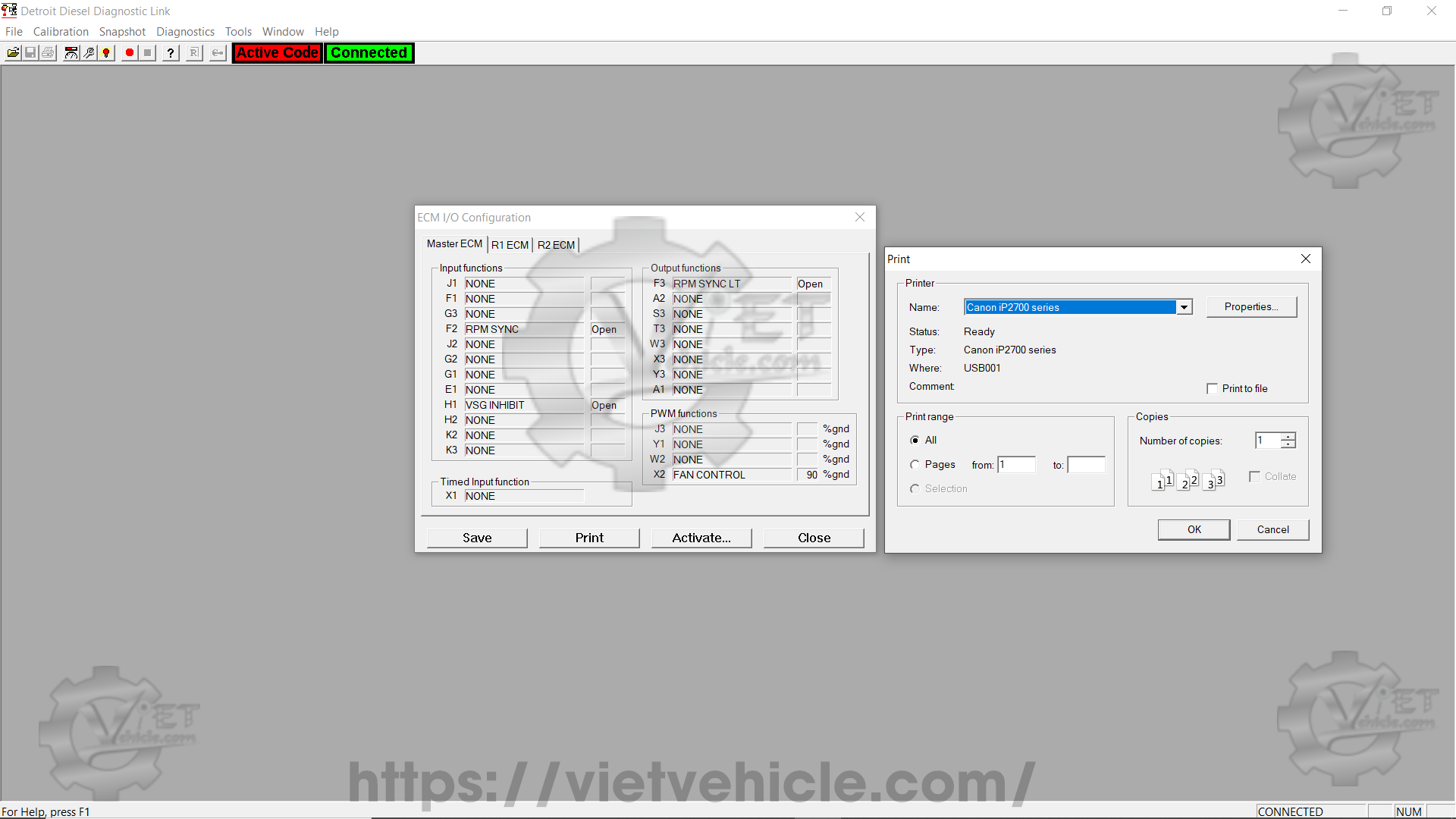

Figure 1.1 – ECM I/O Configuration (Print)

The ECM (Electronic Control Module) Input and Output (I/O) configuration can be examined, and output function values can be temporarily set for testing.

Steps to Examine ECM I/O Configuration

  1. Connect to DDDL Software.
  2. Select “ECM I/O Configuration…” from the Diagnostics menu.
    How to use ECM I O Configuration function on Detroit DDDL 2

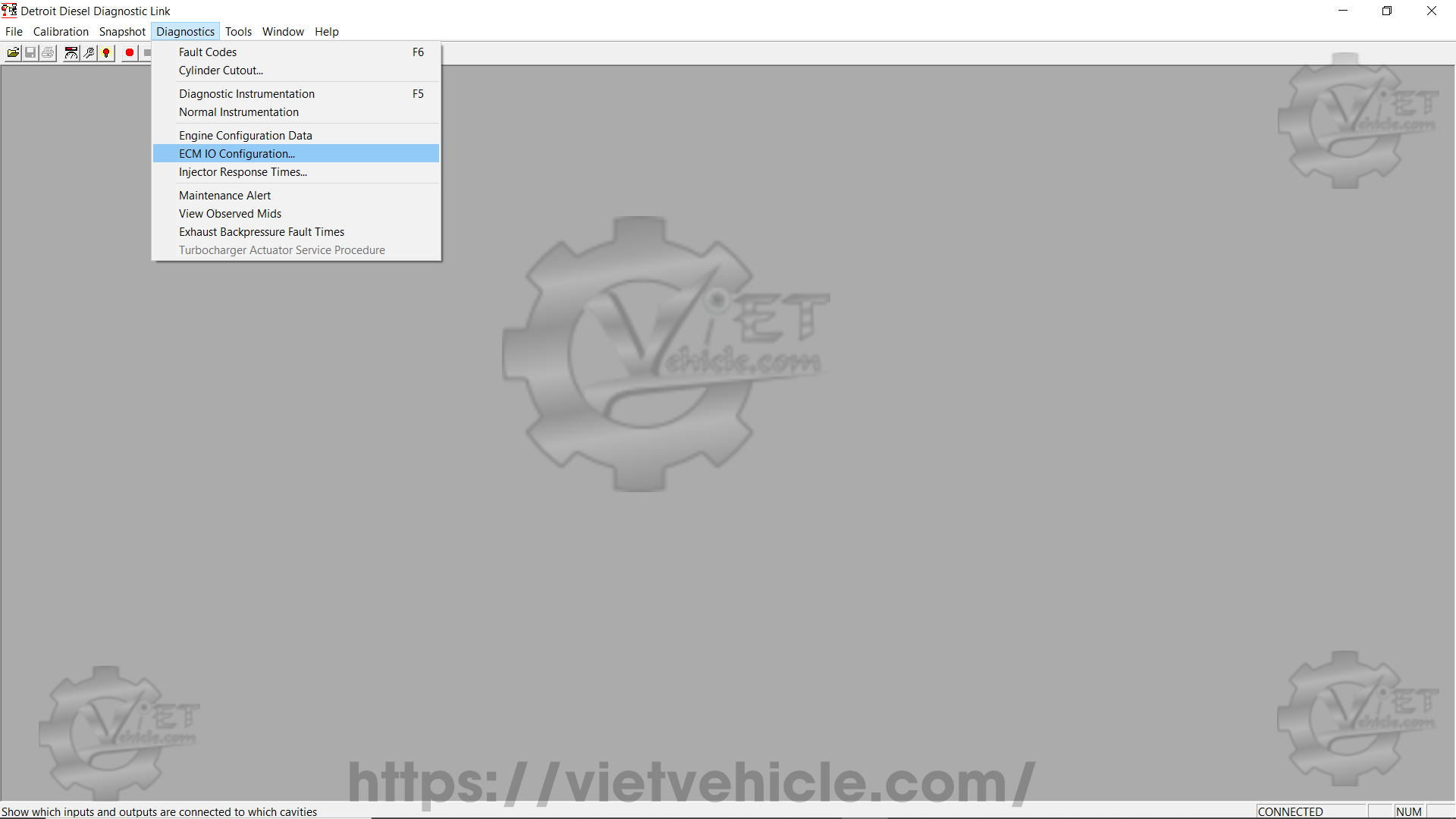

Figure 1.2 – ECM I/O Configuration (Diagnostics)

  1. The ECM I/O Configuration dialog box will appear.
    How to use ECM I O Configuration function on Detroit DDDL 3

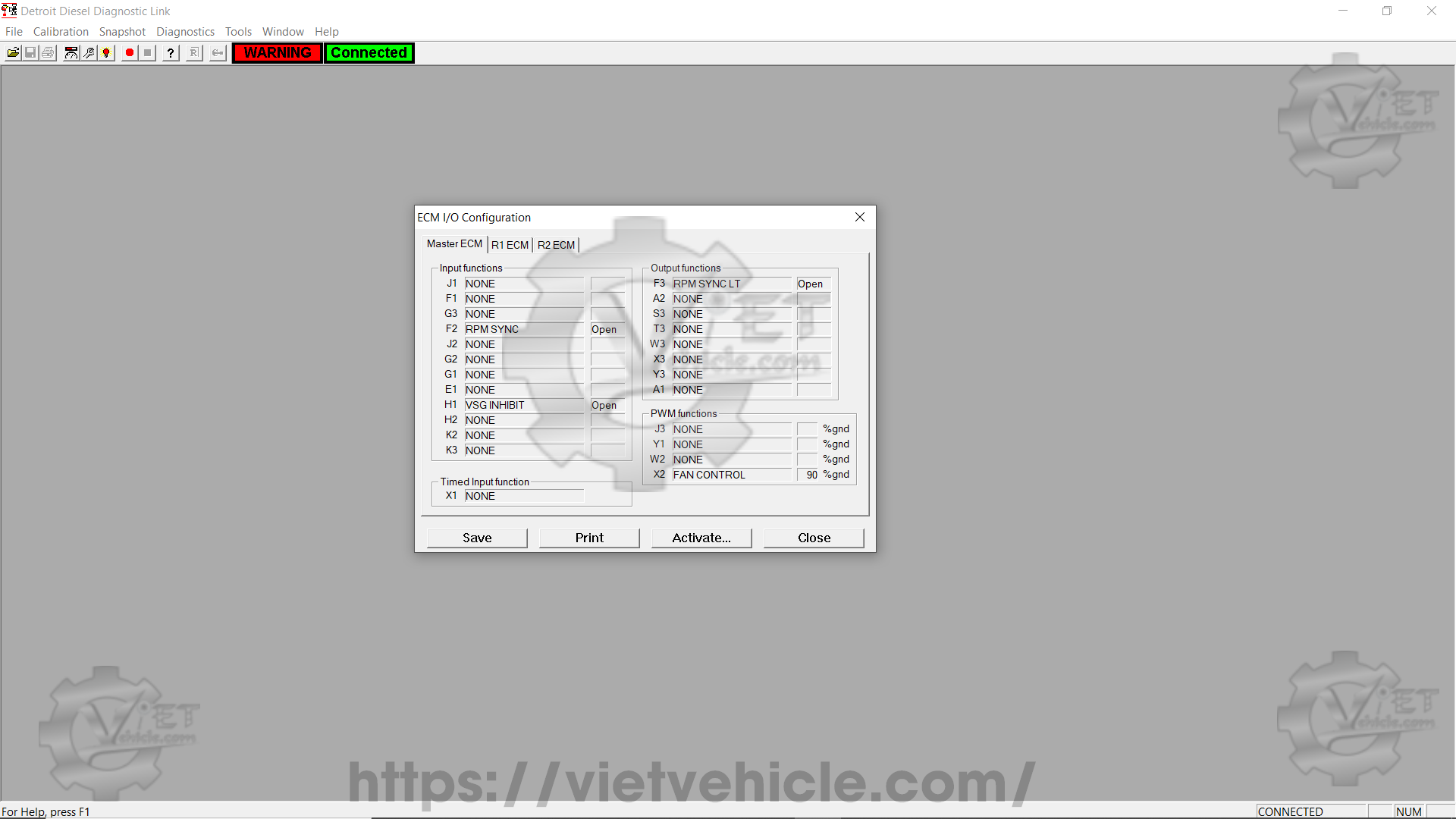

Figure 1.3 – ECM I/O Configuration

Saving ECM I/O Configuration

  • Press Save to store a record of the current I/O configuration.
  • The record will be saved automatically with a generated filename.
  • A message box will confirm the name and location of the saved file.
    How to use ECM I O Configuration function on Detroit DDDL 4

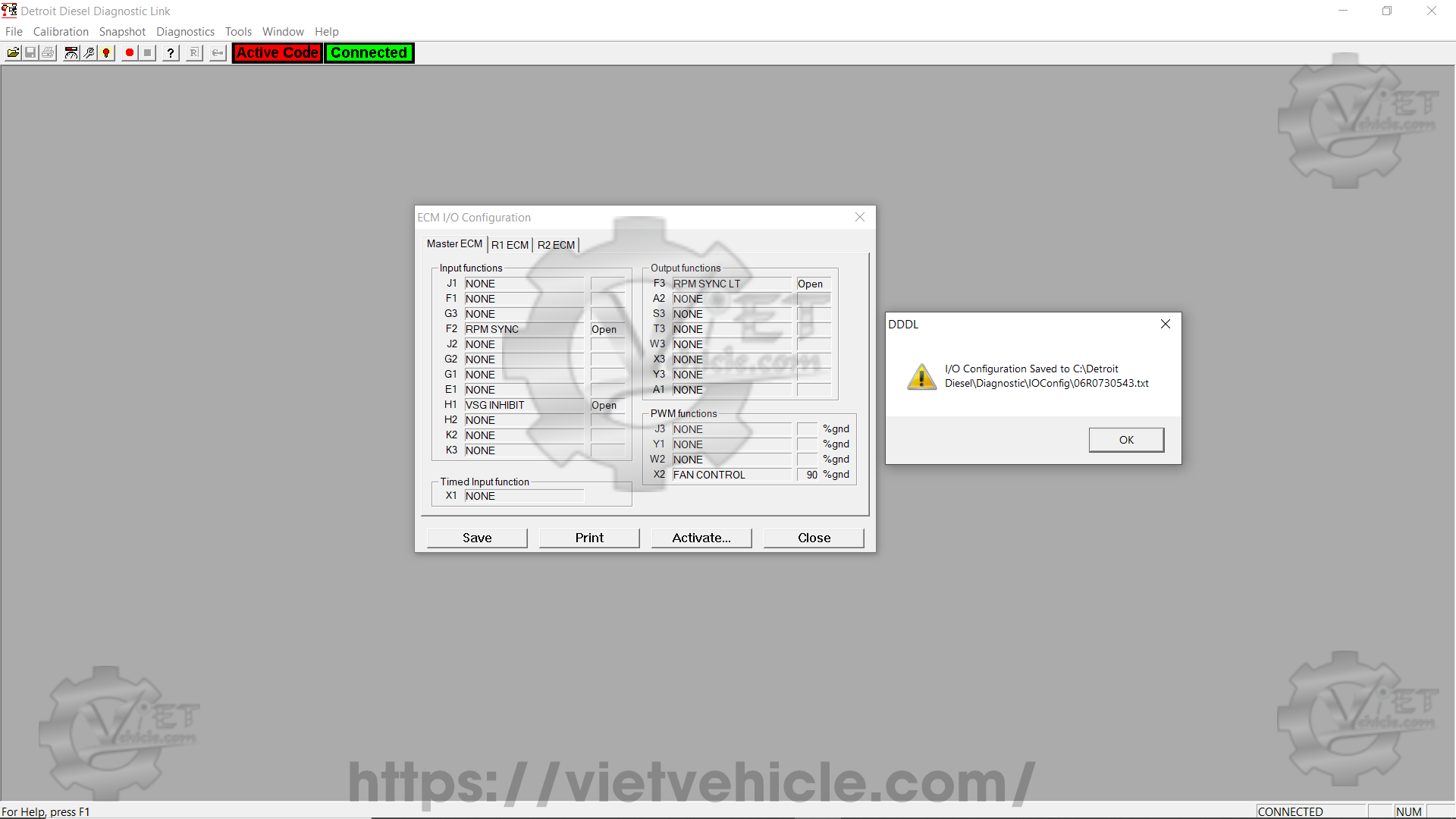

Figure 1.4 – I/O Configuration Saved

Printing ECM I/O Configuration

  • Press Print to open the Print dialog box, where print options can be selected.(refer to Figure 1.1 above)
  • The same dialog box appears when choosing Print from the File menu.

Temporarily Setting Output Function Values for Testing

  1. Press Activate… to modify output functions.

How to use ECM I O Configuration function on Detroit DDDL 5

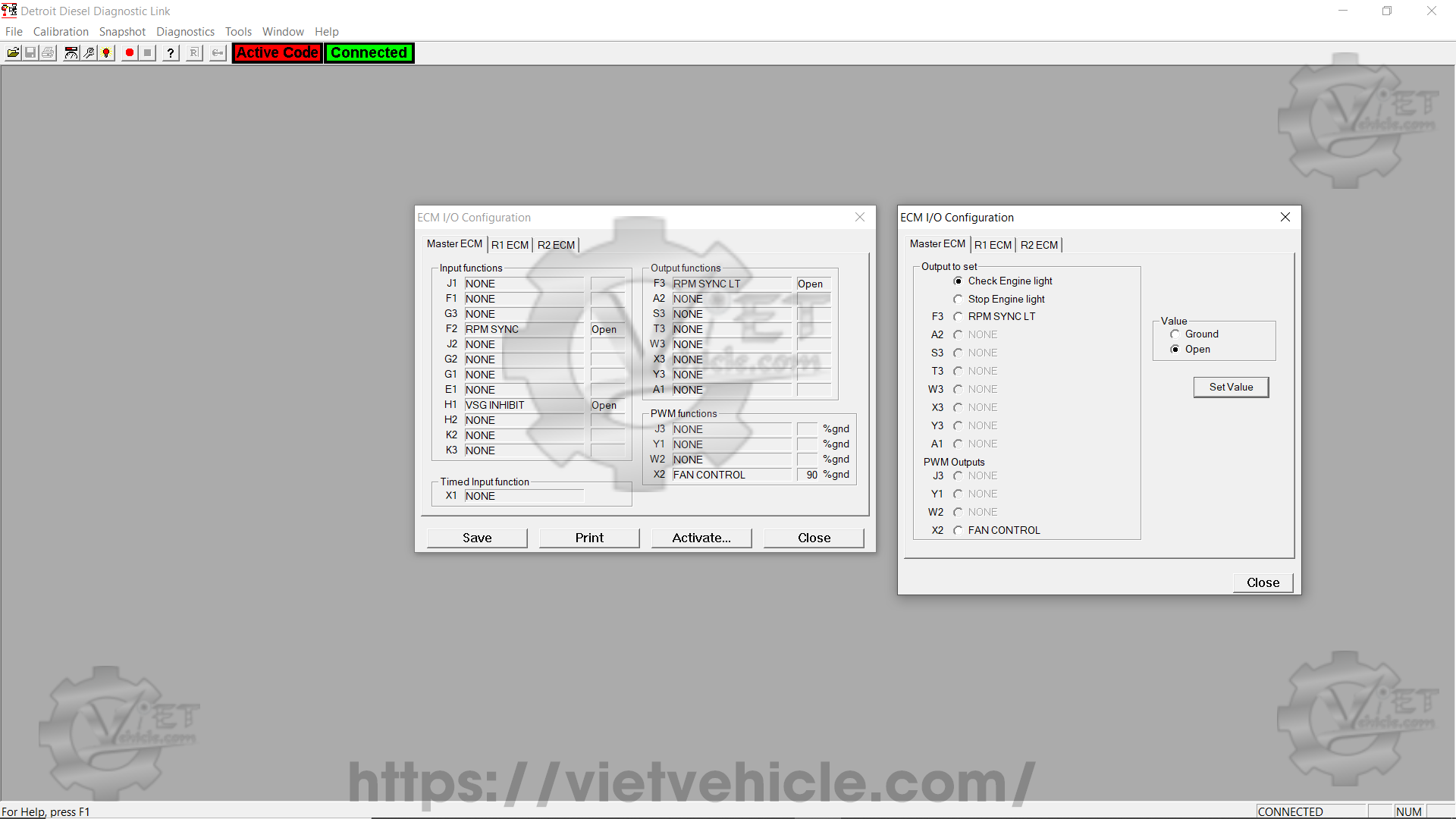

Figure 1.5 – Activate… (Output to Set)

  1. Select the Output function to set by clicking a radio button.
    For PWM (Pulse Width Modulation) Outputs, the radio buttons are replaced with a spin box for selecting percentage values.

How to use ECM I O Configuration function on Detroit DDDL 6

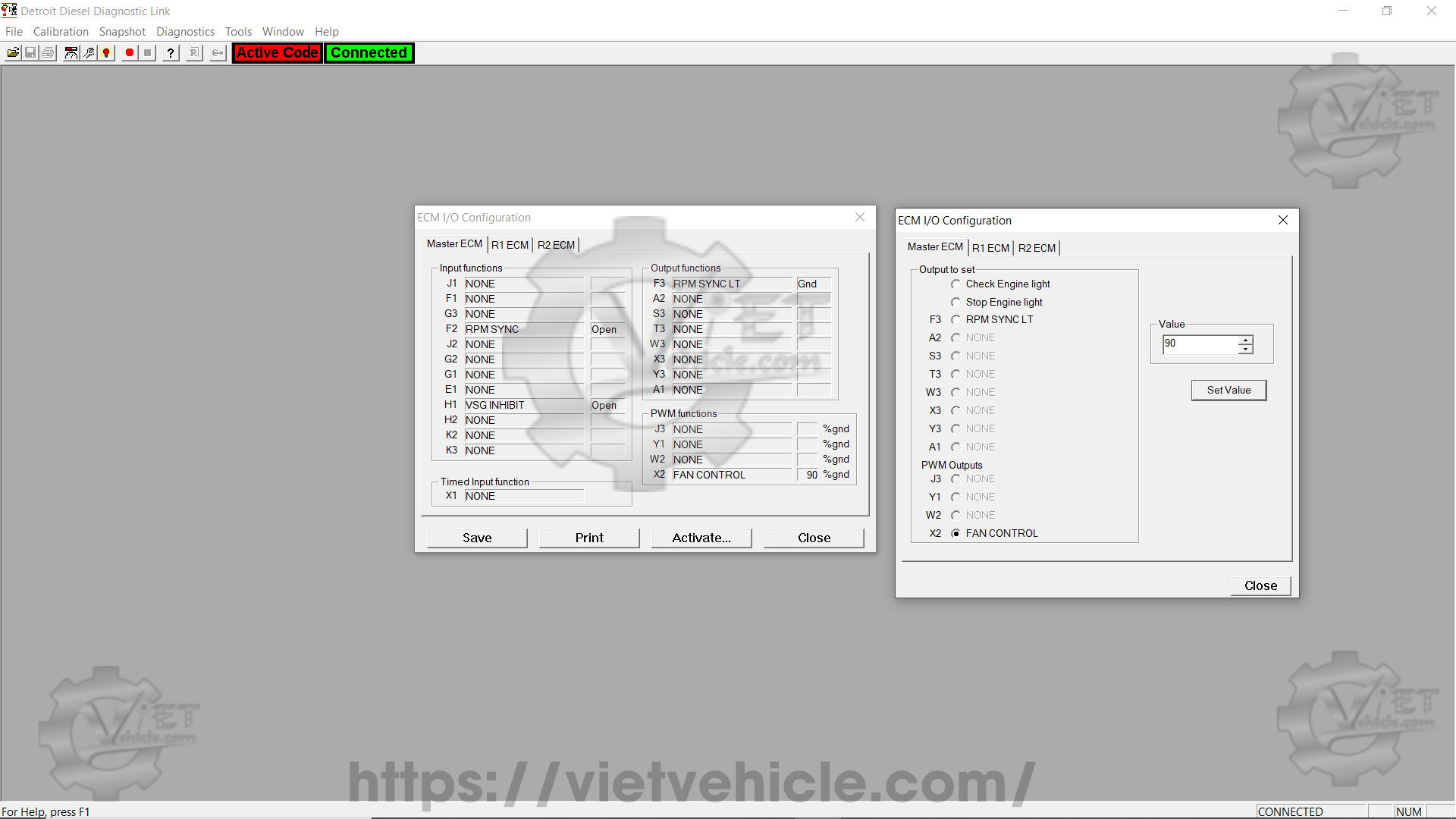

Figure 1.6 – PWM Output (Value)

  1. Press Set Value to assign the function value.

Once set, the ECM will maintain the value until the dialog box is closed.

  1. Repeat the steps to configure additional functions.
  2. Press Close to reset function values and restore ECM control.
